KML

Rotary slasher

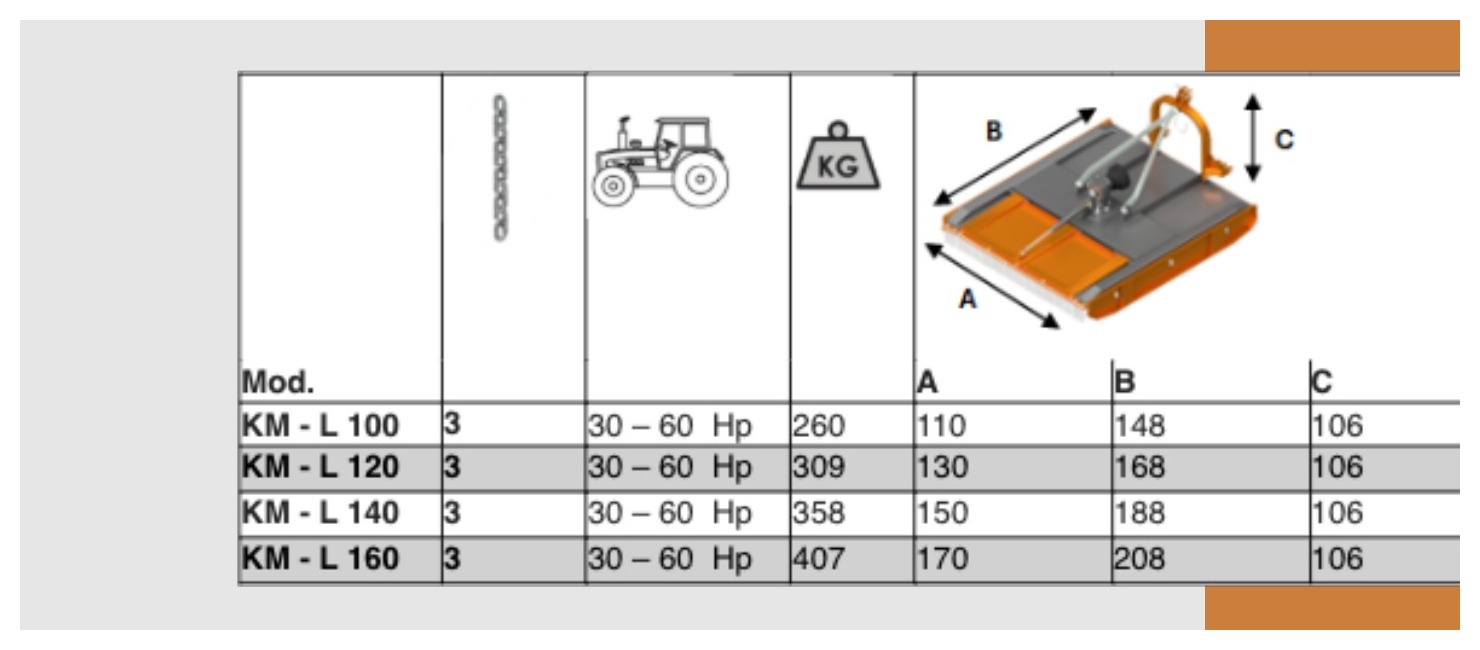

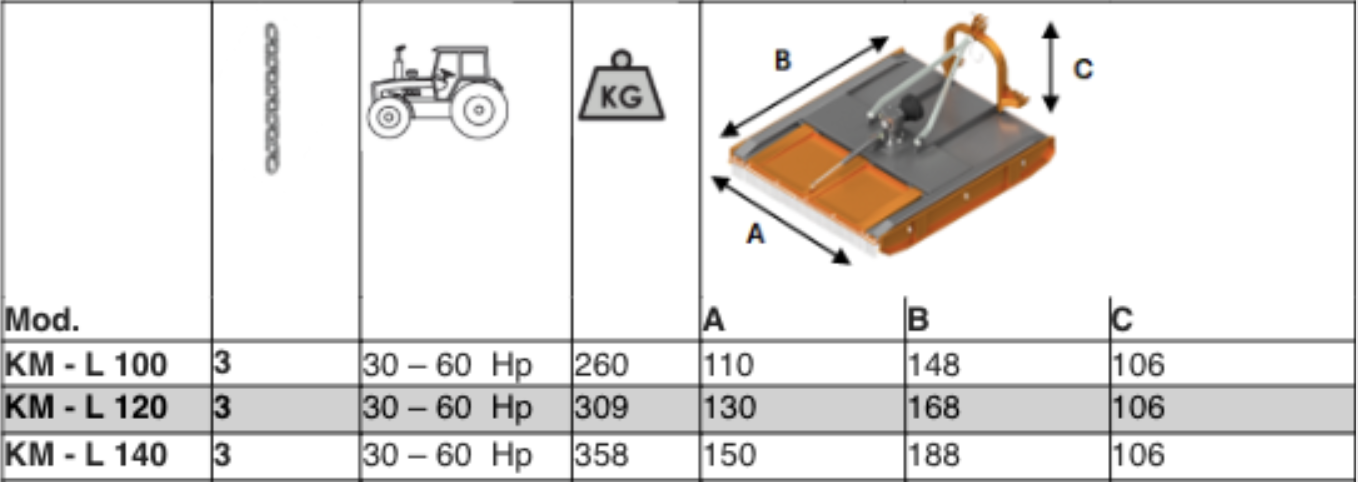

The new KML is a compact, robust and versatile chain mulcher designed for green area maintenance, uncultivated land, embankments, pastures and light undergrowth. Its three-chain rotor with 12 mm links is capable of cutting vegetation up to 3–4 cm in diameter, such as weeds, brambles, bushes and small prunings — even on stony or uneven terrain. Available in KML 100, 120, 140 and 160 versions, it features a reinforced yet lightweight frame for excellent manoeuvrability and durability. Front chain protection and height-adjustable skids ensure safe and uniform work in all conditions. Suitable for tractors from 30 to 60 HP. Ideal for maintenance of: green areas, pasture land, canal banks, vineyard and orchard headlands, pathways, farm surroundings, light scrub and uncultivated land. Available versions (working width · weight · HP): • KM-L 100 — 100 cm · 228 kg · 30–60 HP • KM-L 120 — 120 cm · 257 kg · 30–60 HP • KM-L 140 — 140 cm · 286 kg · 30–60 HP • KM-L 160 — 160 cm · 315 kg · 30–60 HP

Mount

Rear

Tractor HP

30 HP

Max. wood

4 cm

Rotor

—

Drive

Direct

PTO

540 rpm

• 540 rpm gearbox
• Height-adjustable bolted skids
• Reinforced lightweight frame
• Direct transmission
• Double chain protection, front and rear
• Rotor with 3 chains, 12 mm diameter
• Available in KML 100 / 120 / 140 / 160 working widths
• Optional: PTO shaft
