Forestry
M1
Medium-class workhorse
Step up to a Ø 450 rotor with greater chassis strength and PTO flexibility. Built for daily land-reclamation contractors.
- Mount
- Rear
- Tractor HP
- 110 HP
- Max. wood
- 35 cm
- Rotor
- Ø 450 mm
- Drive
- Unilateral
- PTO
- 540 / 1000 rpm
- PTO 540 or 1000 rpm with gearbox freewheel
- Unilateral drive
- Automatic belt tensioner
- Double housing
- Reinforced height-adjustable skids
- Front and rear chain curtains
- Hydraulic rear hood
- Three-point CAT 2
- Counter-cutter
- Ø 450 fixed-tool limiter rotor
Required on the tractor
- 1 DA control valve for hydraulic rear hood

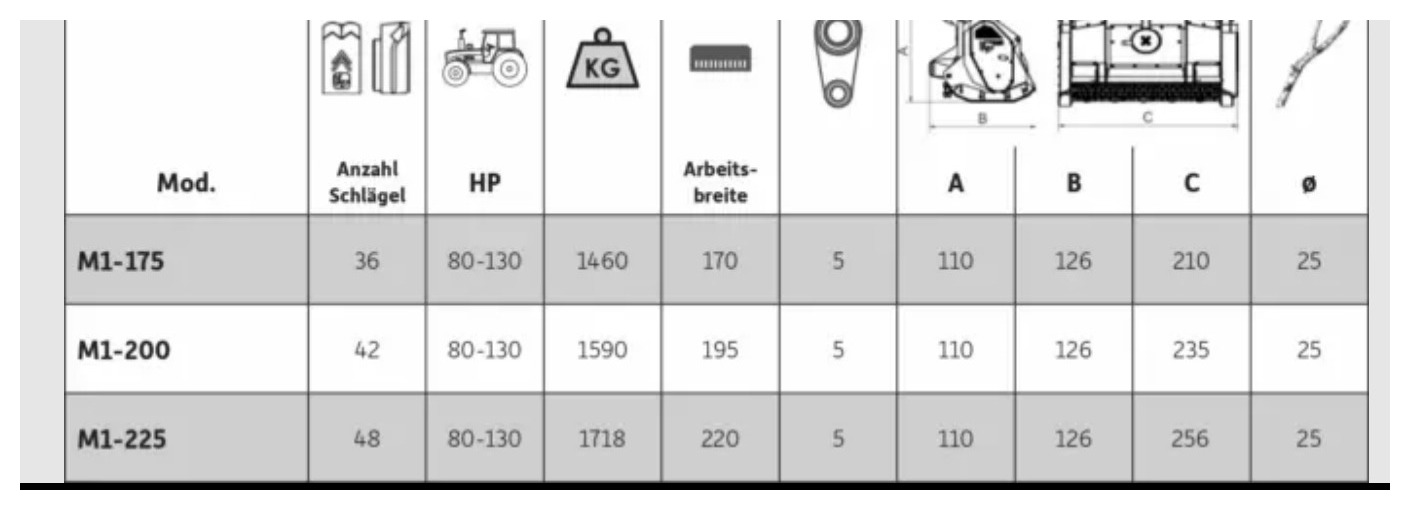

Technical data
Clearing a steep alpine slope?
Tell us about your tractor, the terrain and the wood diameter — we'll match the right rotor and drive.
